Bilateral fixation from a single lateral position. Two applications.

For healthcare professionals

Both Foundation Surgical implants are built around the same proprietary deployable staple mechanism, protected by issued and pending patents. Our focus is motion preservation, and when fusion is the right choice for a patient, we offer a lateral fusion system built on the same platform.

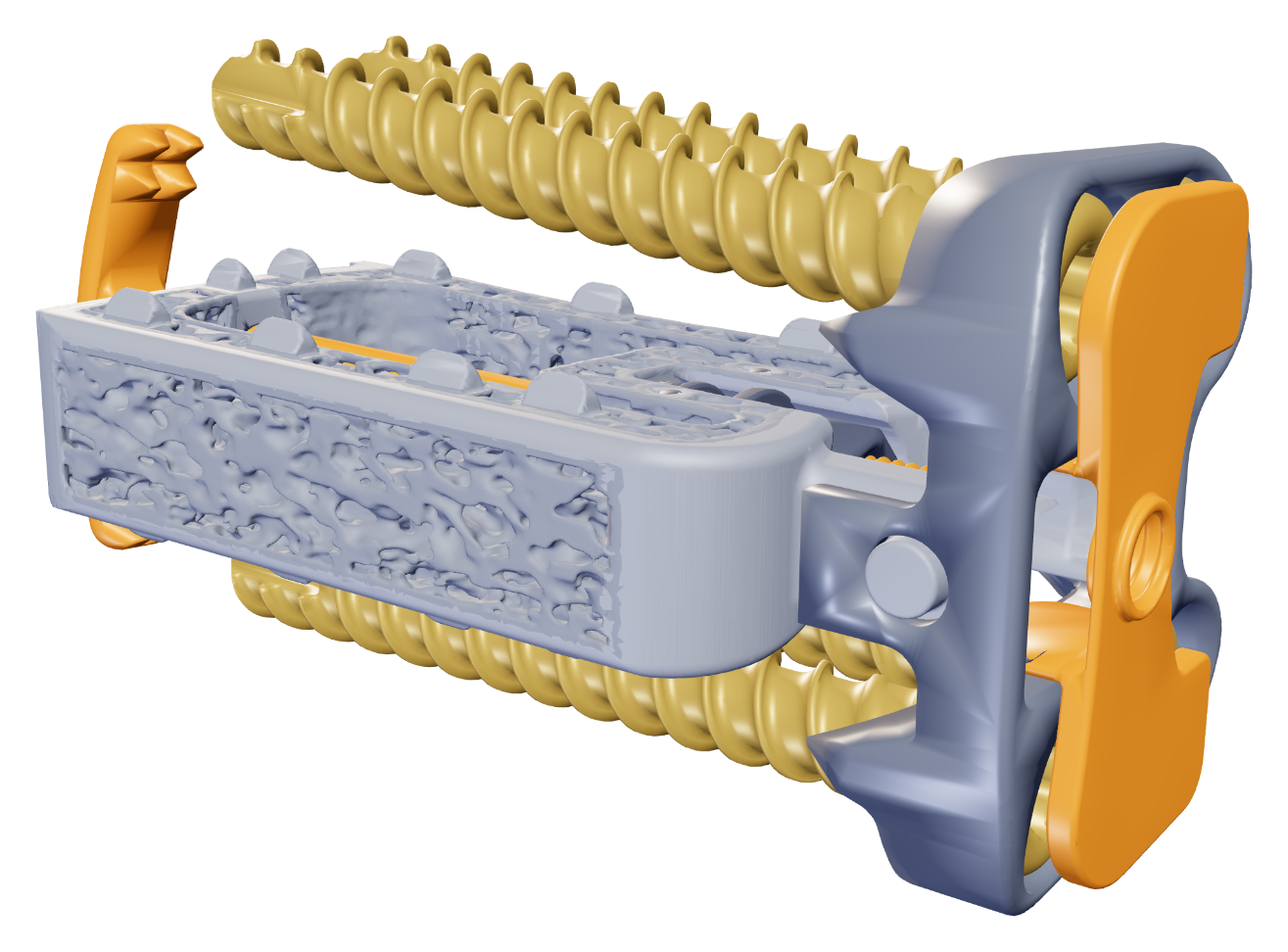

Vertiwedge® intraosseous implant with bone screws, lateral plate, cover plate, and deployable staple
Vertiwedge®
Interwedge® Standalone Lateral implant with bone screws, pivoting lateral plate, cover plate, and deployable staple
Interwedge® Standalone Lateral

At a glance

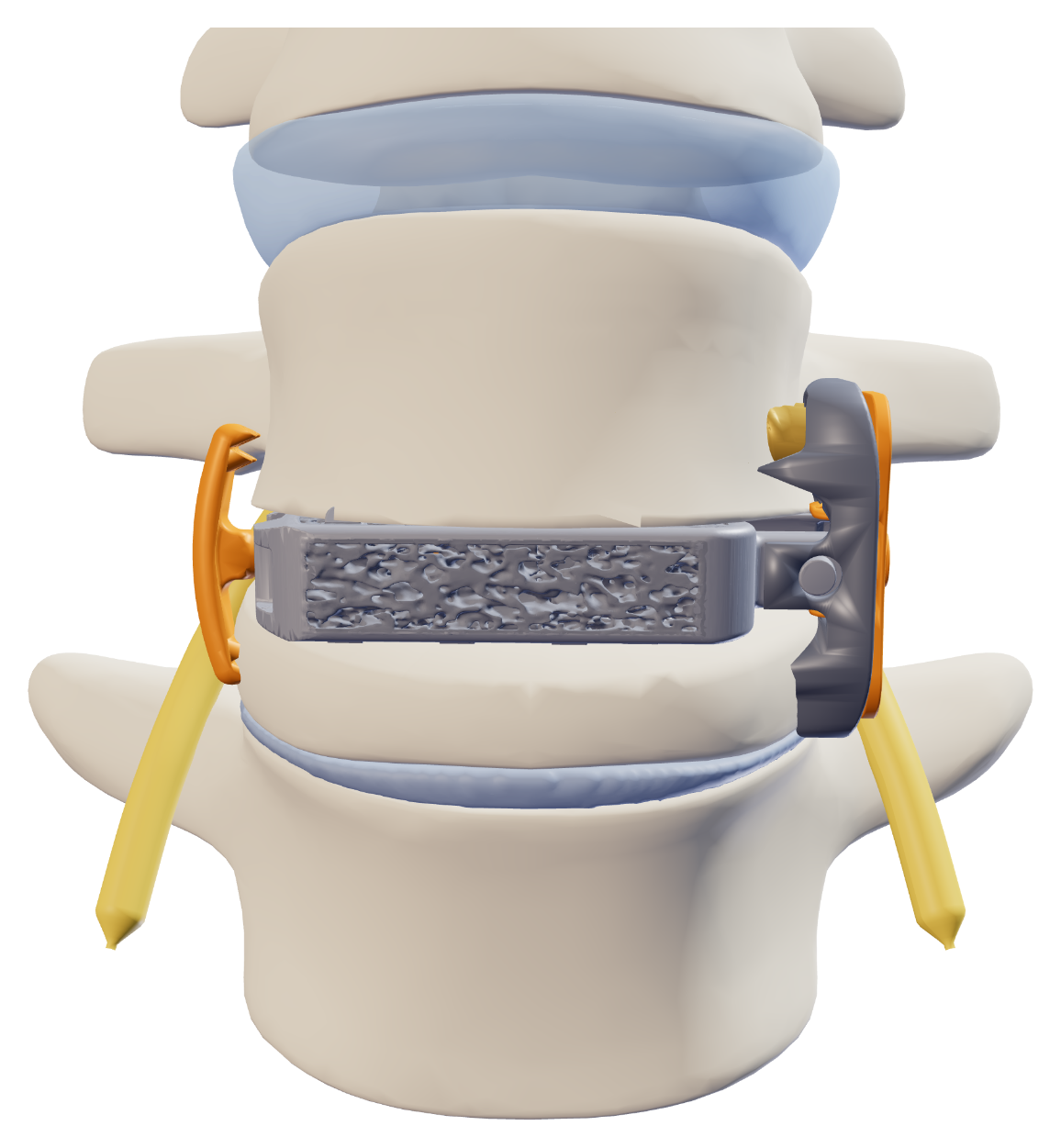

Anterior rendering of Vertiwedge® implanted within the L4 vertebral body
Vertiwedge®Within a single vertebral body · Disc intact
Anterior rendering of Interwedge® implanted in the L4–L5 disc space
Interwedge®In the disc space between two vertebrae
SpecificationVertiwedge®Interwedge®
ProcedureVertebral Body Osteotomy (VBO®)Lateral lumbar interbody fusion
Implant locationWithin a single vertebral bodyIn the disc space between two vertebrae
GoalIndirect decompression, designed to preserve motion at the discInterbody fusion
FixationBilateral: screws and plate near side, staple far side, through a single lateral approachBilateral: screws and plate near side, staple far side, through a single lateral or oblique-lateral approach
FDA clearanceK241468 (November 2024)K241487 (October 2024)

Motion preservation

VBO®

Vertiwedge®

Intraosseous system for Vertebral Body Osteotomy

Vertiwedge is placed within a single vertebral body to restore and support height for indirect decompression, without fusing across the disc. Bone screws and a lateral plate secure the near side of the vertebra, and its deployable staple secures the far side, through the same lateral approach. Vertiwedge is available in a wide range of sizes and lordotic and coronal angulations.

FDA cleared under K241468 (November 2024).

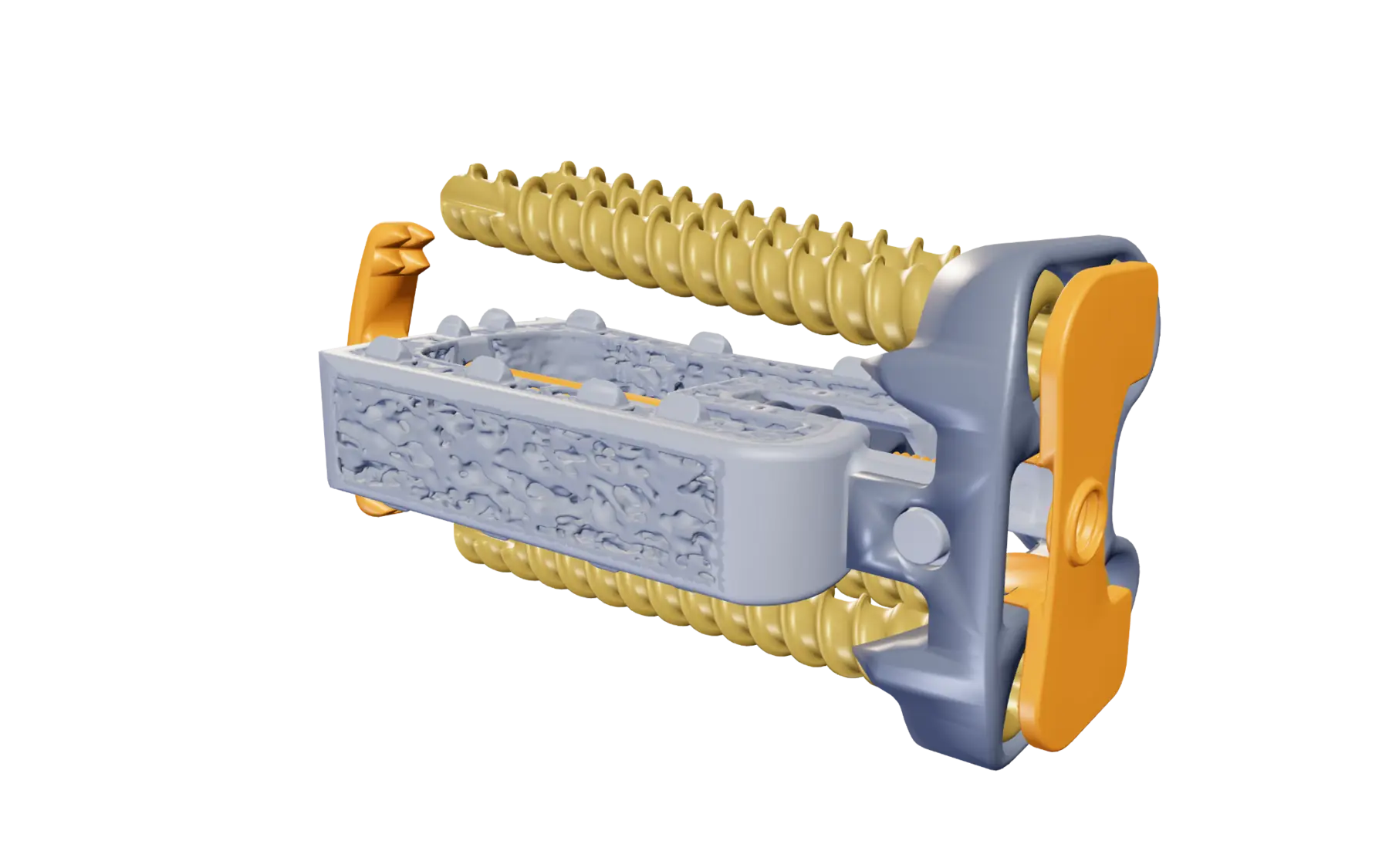

Vertiwedge® implant showing the deployable staple, screws, and cover plate
Vertiwedge® system components shown for illustration.

The Vertiwedge® Intraosseous System is indicated for use in the thoracolumbar spine (T1–L5) for partial replacement of a diseased or damaged vertebral body resected or excised to replace a portion and/or restore the height of a collapsed vertebral body for the treatment of previous trauma (i.e., fracture or tumor) or degenerative spine disease. See the Instructions for Use for full indications, contraindications, warnings, and precautions.

When fusion is the right choice

Interwedge® Standalone Lateral

Lateral lumbar interbody fusion system

Interwedge brings the same deployable staple to the disc space for patients who need an interbody fusion. Bone screws and a pivoting lateral plate secure the near side, and the deployable staple secures the far side through a single-position lateral or oblique-lateral approach. Interwedge is FDA cleared for standalone use when used as indicated with its accompanying bone screws.

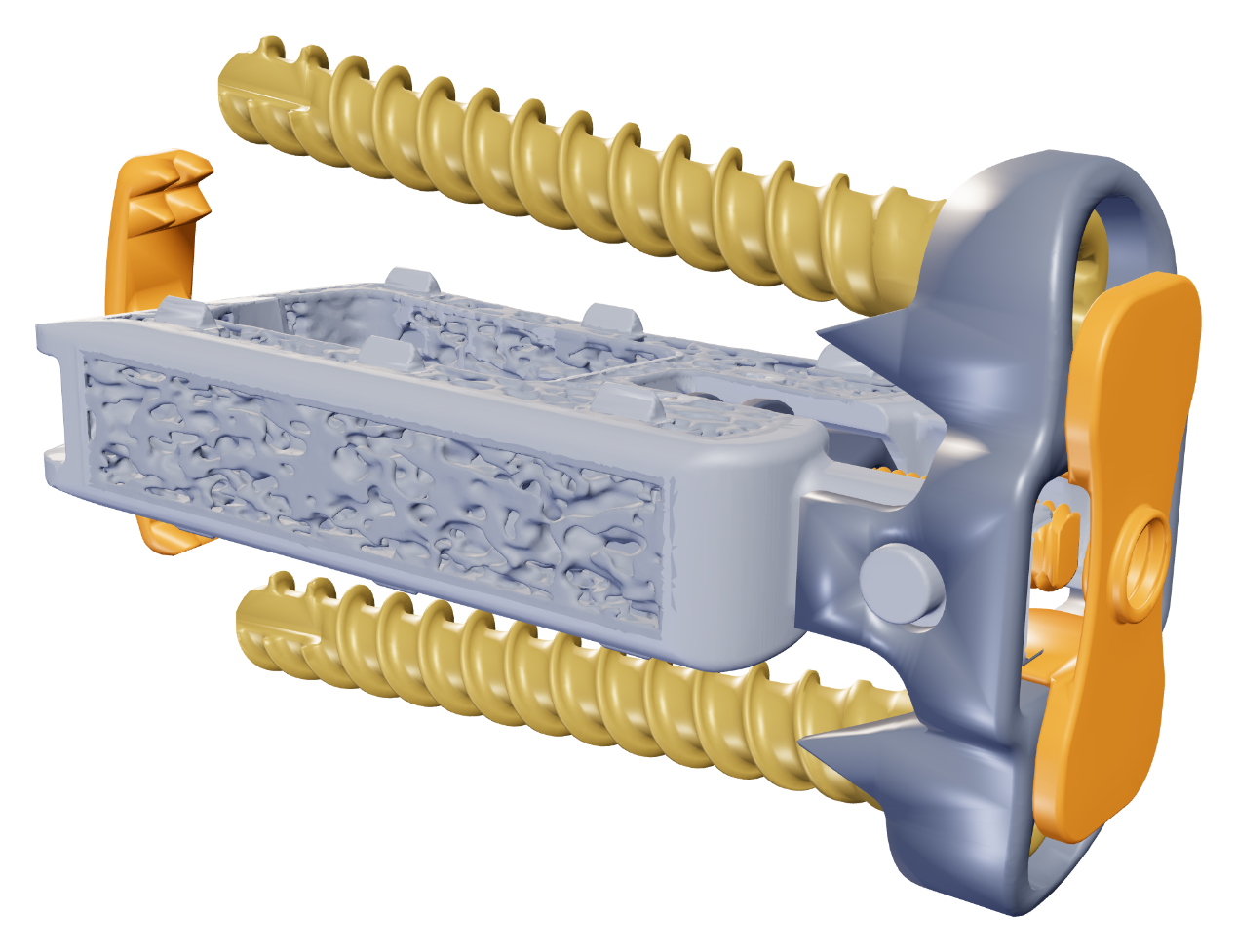

Interwedge® Standalone Lateral implant with bone screws, pivoting lateral plate, cover plate, and deployable staple
Interwedge® system components shown for illustration.
Deployable staple.
Extends, rotates, and retracts to secure the far side; bone screws and the plate secure the near side.
Pivoting lateral plate.
Fixed to the implant, the lateral plate pivots to align with vertebral body anatomy.
Porous lattice.
3D-printed titanium lattice.
Sizing.
Widths of 18, 22, and 26 mm; lengths of 40–60 mm; heights of 8–16 mm; lordosis of 3°, 10°, 15°, and 20°; coronal angulation of +5°, neutral, and −5°.
Sterile packed.
All implants are provided individually sterile packed.

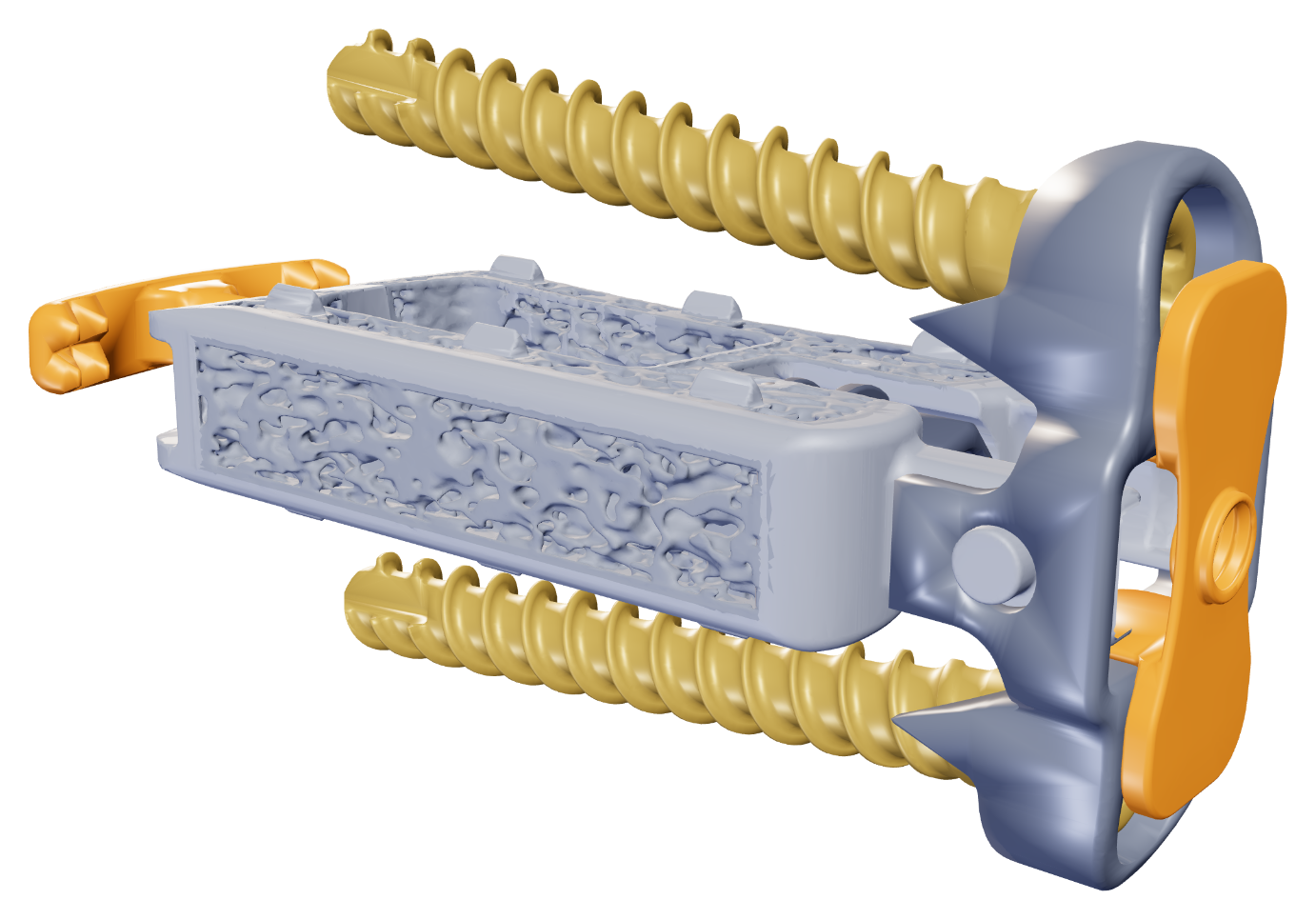

Interwedge® deployable staple extended from the implant
01Extend

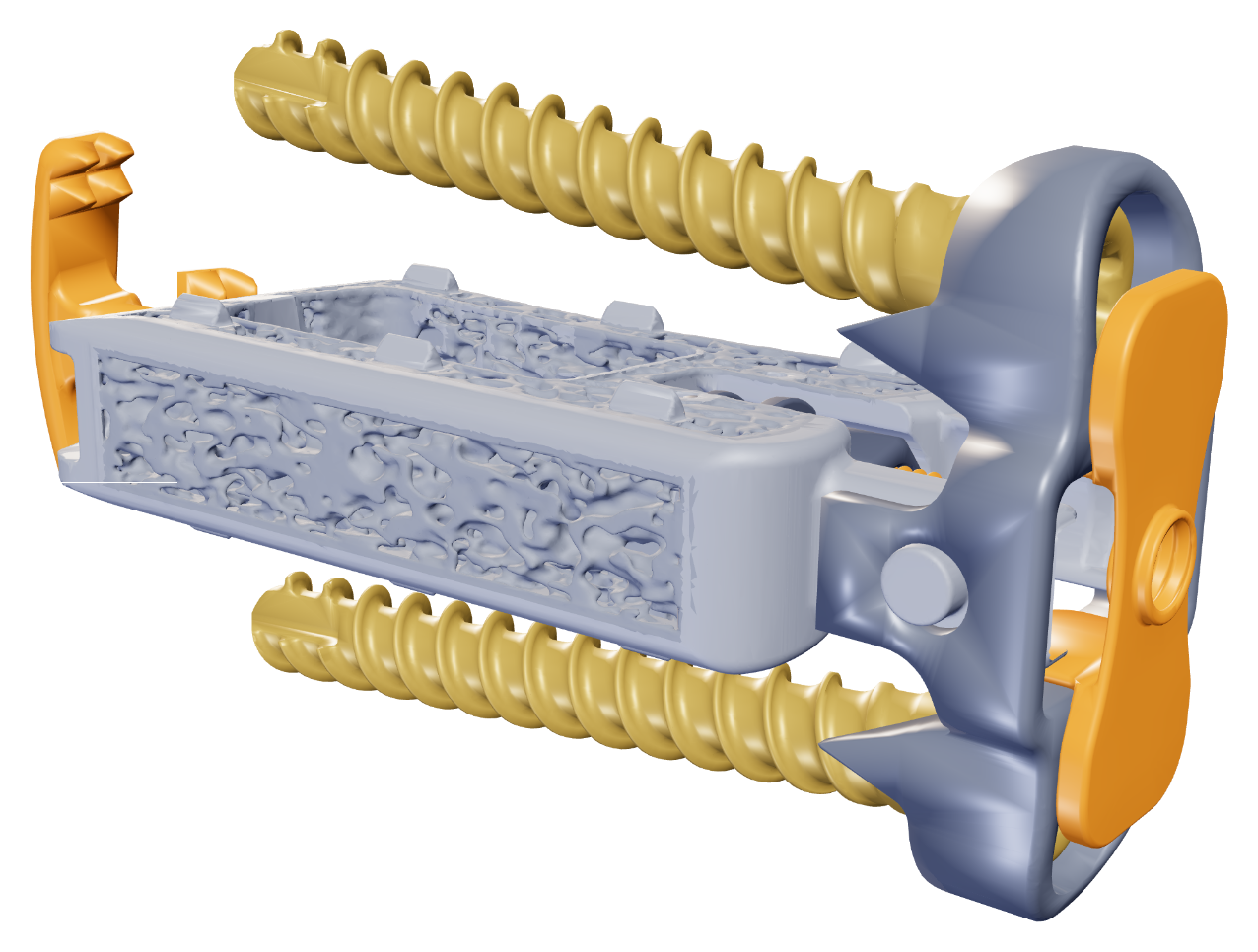

Interwedge® deployable staple rotated into far-side fixation orientation
02Rotate

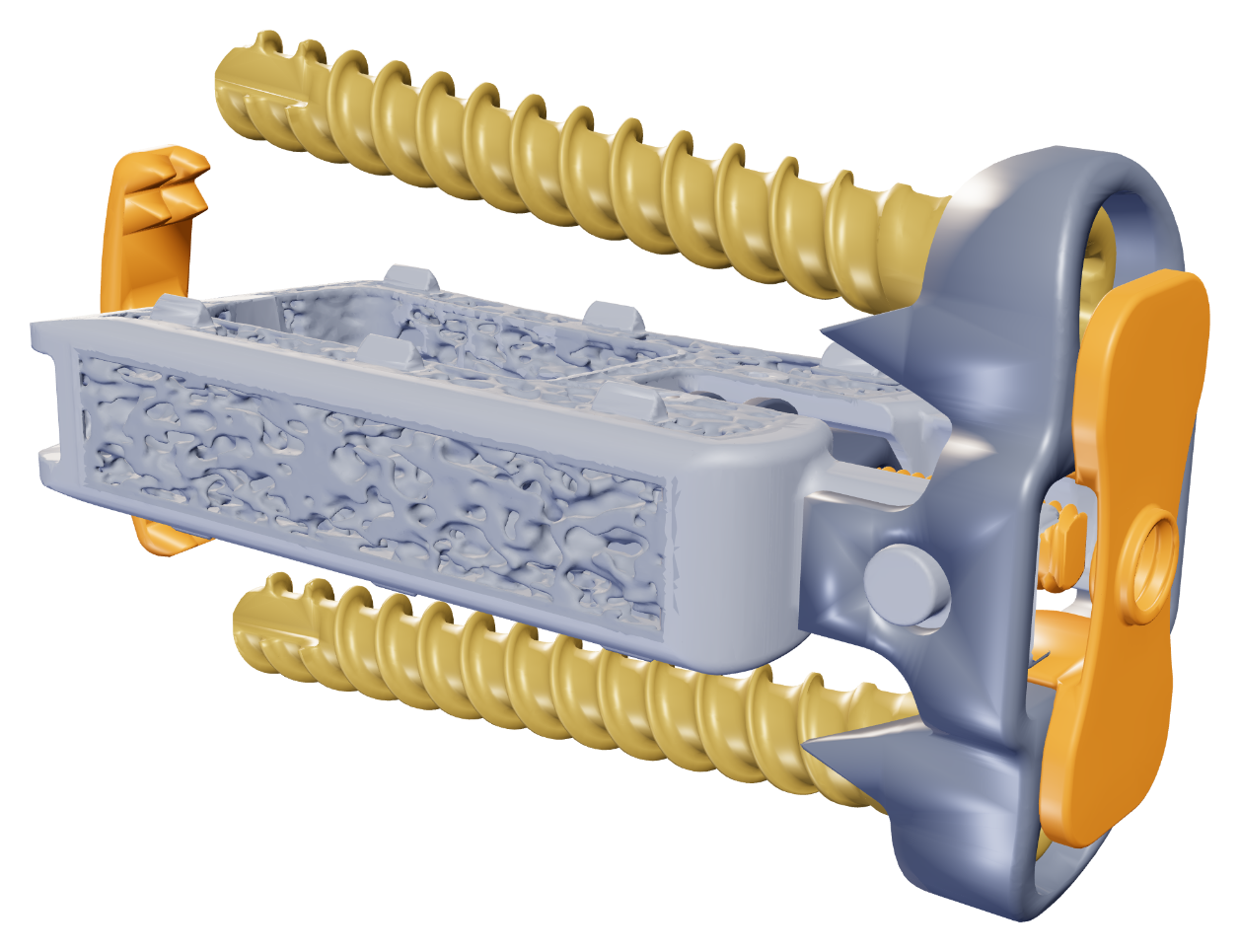

Interwedge® deployable staple retracted toward the implant
03Retract

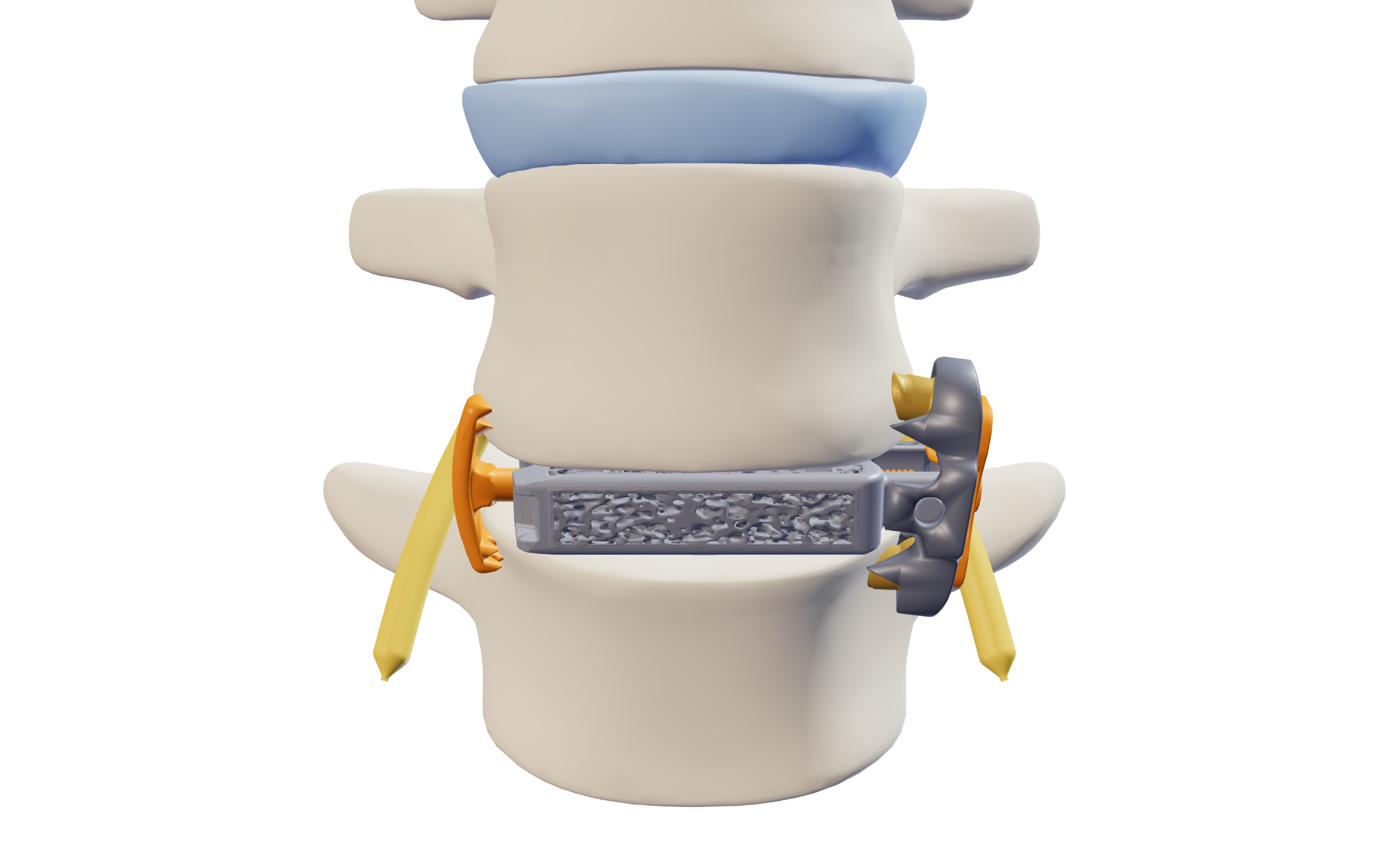

Anterior rendering of Interwedge® seated between two vertebrae
04Seated

FDA cleared under K241487 (October 2024).

The Interwedge® Standalone Lateral is a standalone lateral lumbar interbody fusion device intended for use in patients with degenerative disc disease (DDD) at one or two contiguous levels of the lumbosacral spine (L1–S1). DDD is defined as discogenic back pain with degeneration of the disc confirmed by history and radiographic studies. Patients should be skeletally mature and have had at least six months of non-operative treatment, and may have up to Grade 1 spondylolisthesis or retrolisthesis at the involved level(s). The device is used with the bone screws that accompany the implant. See the Instructions for Use for full indications, contraindications, warnings, and precautions.

Request product information

Coding and reimbursement

Coding support for both procedures.

VBO and Interwedge procedures are each reported using established Category I CPT® codes. Our coding and reimbursement team is available to help surgeons, practices, and hospitals with coding questions, documentation, and preauthorization.

Coding information is provided for reference only. Providers are responsible for code selection, and the existence of a code does not guarantee coverage or payment. CPT® is a registered trademark of the American Medical Association.

Questions about our technologies?

Our team can help with product, technical, or coding questions.

Talk to our team

Rx only. Federal law restricts these devices to sale by or on the order of a physician. Refer to the Instructions for Use for each device for a complete list of indications, contraindications, warnings, and precautions.
